Working principle

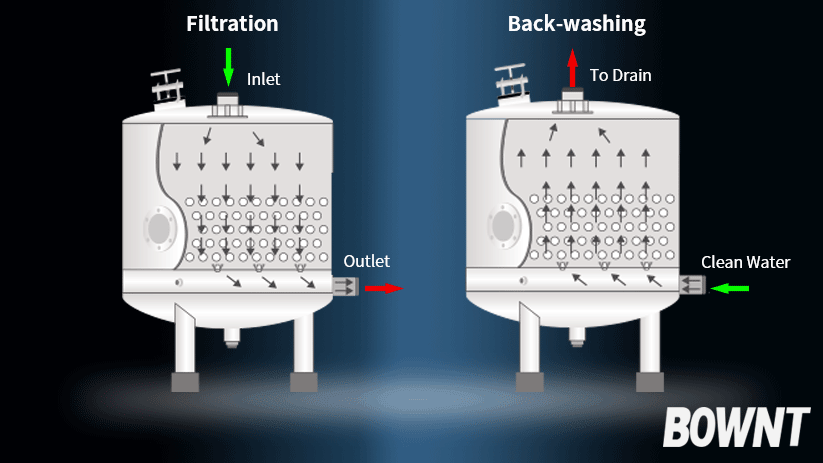

BOWNT BOM filter consists of several filter units; feed flow enters the filter units for filtration through the three-way valves ( connect the feed line to the filter units and close the drain line ), produced water after filtration converges into the discharge line. Water fills into the internal filter media smoothly through the diffuser, then impurities intercepted. Several of umbrella-shaped water collectors at the bottom of the filter uniformly collect and discharge the filtered water.BOWNT BOM filter adopts advection filtration, which realizes a better filtration effect at high flow velocity.
While filter head loss is increasing due to the accumulation of impurities in the filler media surface,filter automatically switches into backwashing cycle to clean up the impurities. The control unit sends a signal to the solenoid valve of the first filter unit, and the solenoid valve is activated under the water pressure to cut off the feed line and connect the filter unit to the drain line. At this point,filtered water back flushes the filter media in a high speed under the back pressure, then the waste water is discharged from the drain line. Special designed water collectors form a inner loop in the filter media during backwashing, filter media rubs against each other to maximumly increase the backwashing frequency and reduces water consumption, without sand leakage during backwashing.Once finished the backwashing cycle, valve returns to the filtering status, and next filter unit goes on with backwashing cycle.
