Product features:

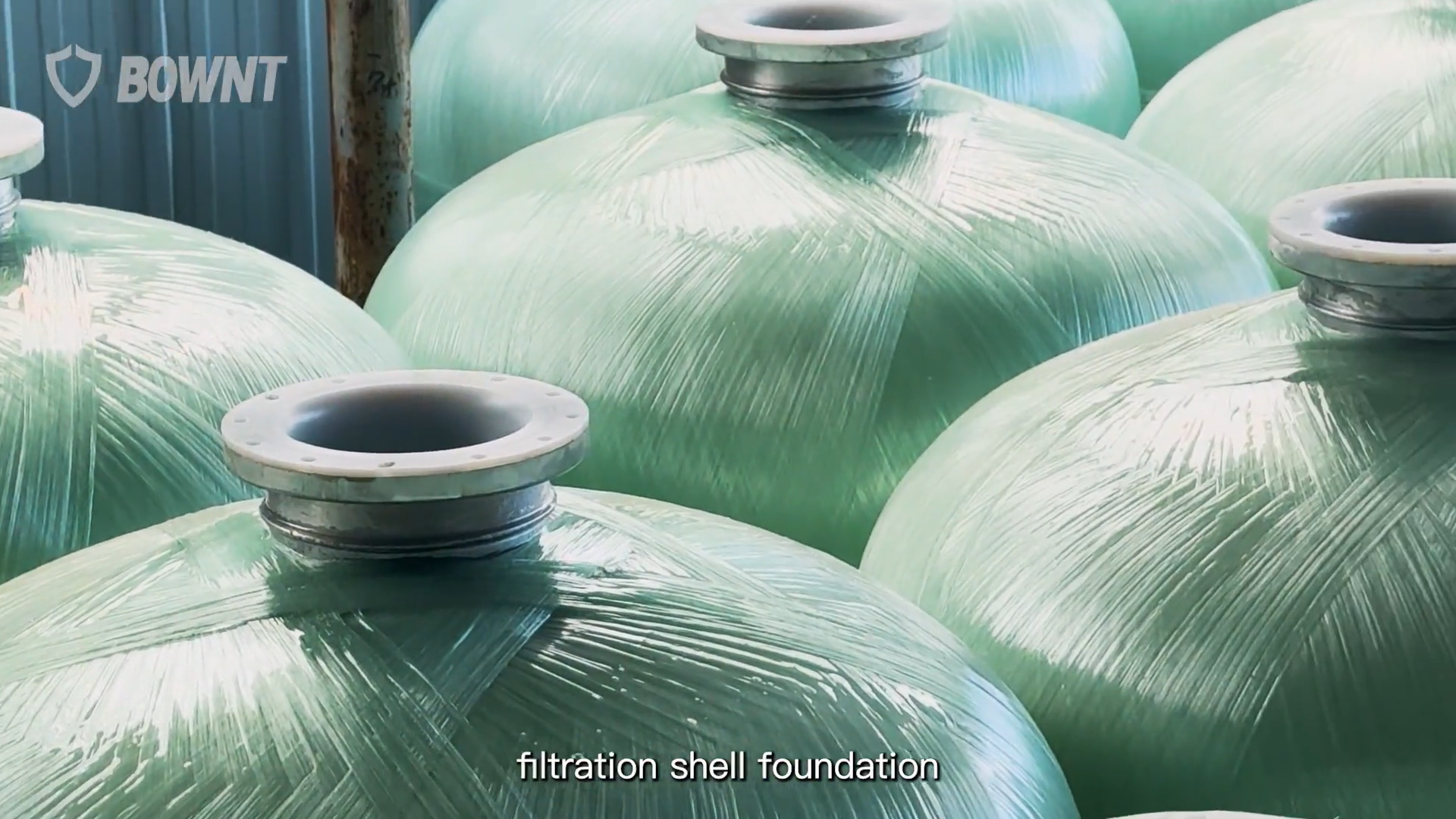

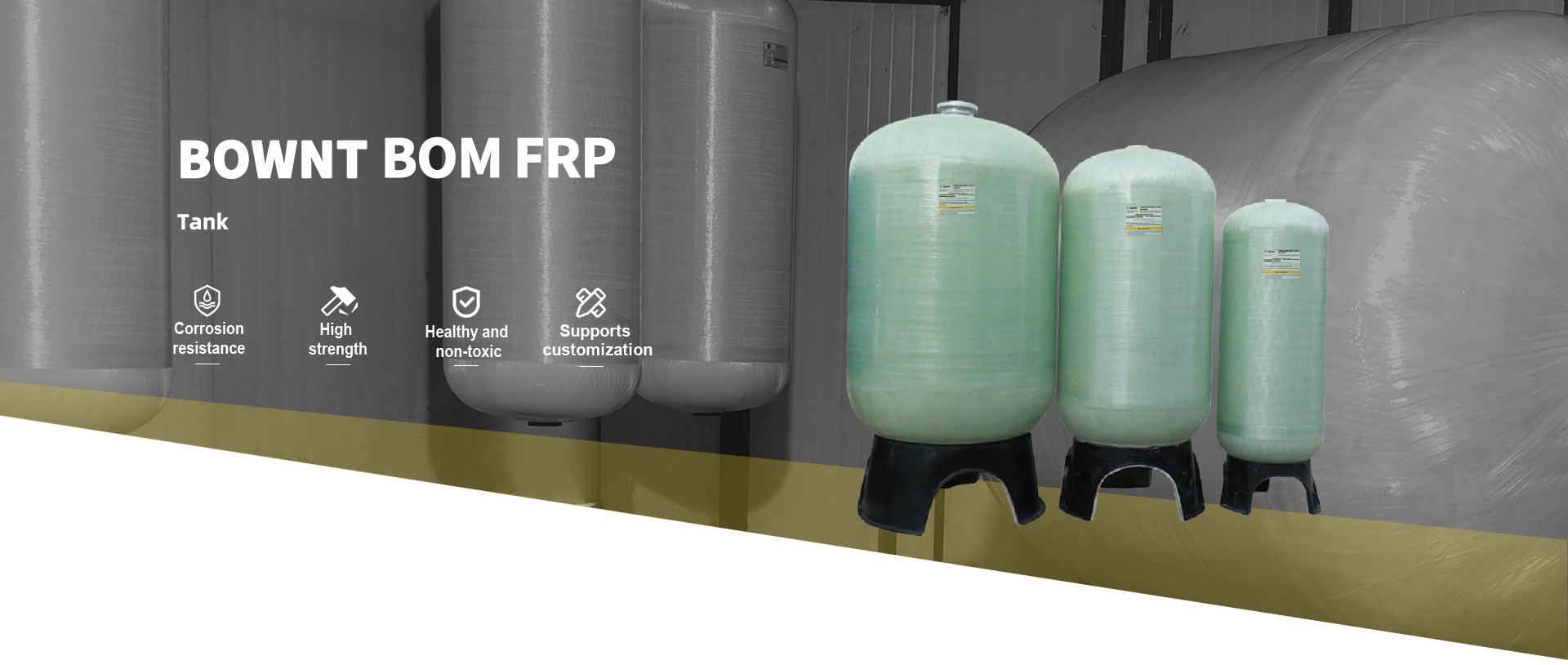

The BOWNT BOM FRP Storage Tank is a composite product made of fiberglass-reinforced resin, manufactured using a microcomputer-controlled winding process. It offers outstanding advantages such as excellent corrosion resistance, high strength, lightweight construction, and long service life. With its flexible design and superior performance, this tank has been widely adopted across industries including chemicals, environmental protection, food processing, and pharmaceuticals, increasingly replacing traditional carbon steel and stainless steel tanks.
---
Corrosion resistance: anti-corrosion materials are used for both the inner and outer layers.
High strength: mechanical strength index is higher than ordinary carbon steel.
Healthy and non-toxic: The inner lining is made of non-toxic PE plastic, meeting the hygienic standards for drinking water.
It has an attractive appearance and multiple color options are available.

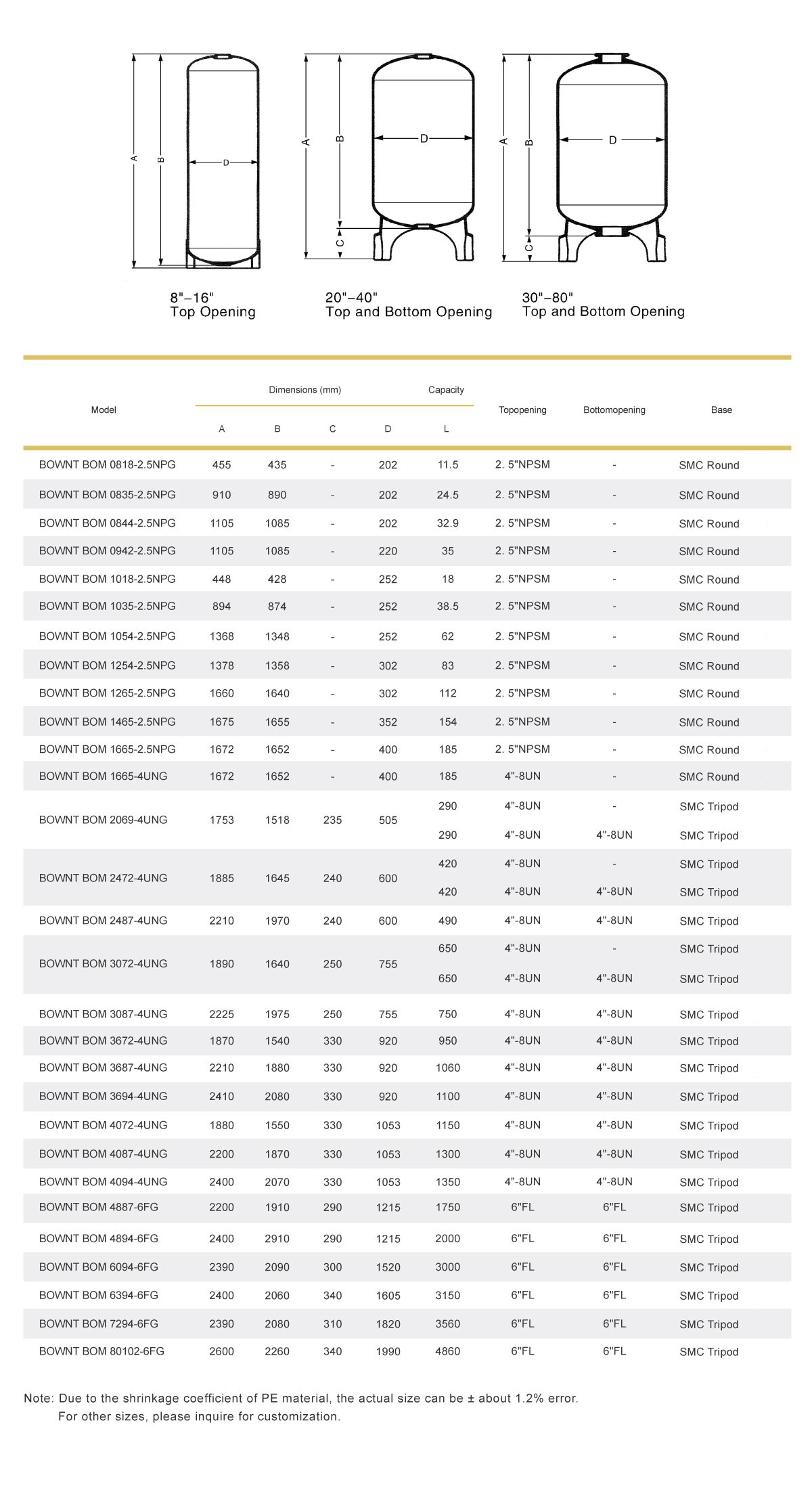

Technical parameter: Detailed parameters >

Inner tank materialPolyethylene
Outer tank MaterialHigh-quality glass fiber reinforced plastic (GFRP) fibers combined with epoxy resin
Material of the tank mouthGlass fiber reinforced ABS material
Flanges MaterialHigh-strength aluminum alloy
Tank Base MaterialPP/PE /FRP
Max. Working Pressure10.5Bar(150psi)
Cartridge material1-48℃(34-120°F)
Min. storage and transportation temperature-27℃(-17°F)
TestExceed 100,000 times of cycle test from 0-150psiwith stsnding pressure.
Max. vacuum127mmHg

Working principle

Production process:
CNC controlled blow molding / Multi-arm rotational moulding / CNC controlled injection molding / CNC controlled filament winding

Related cases

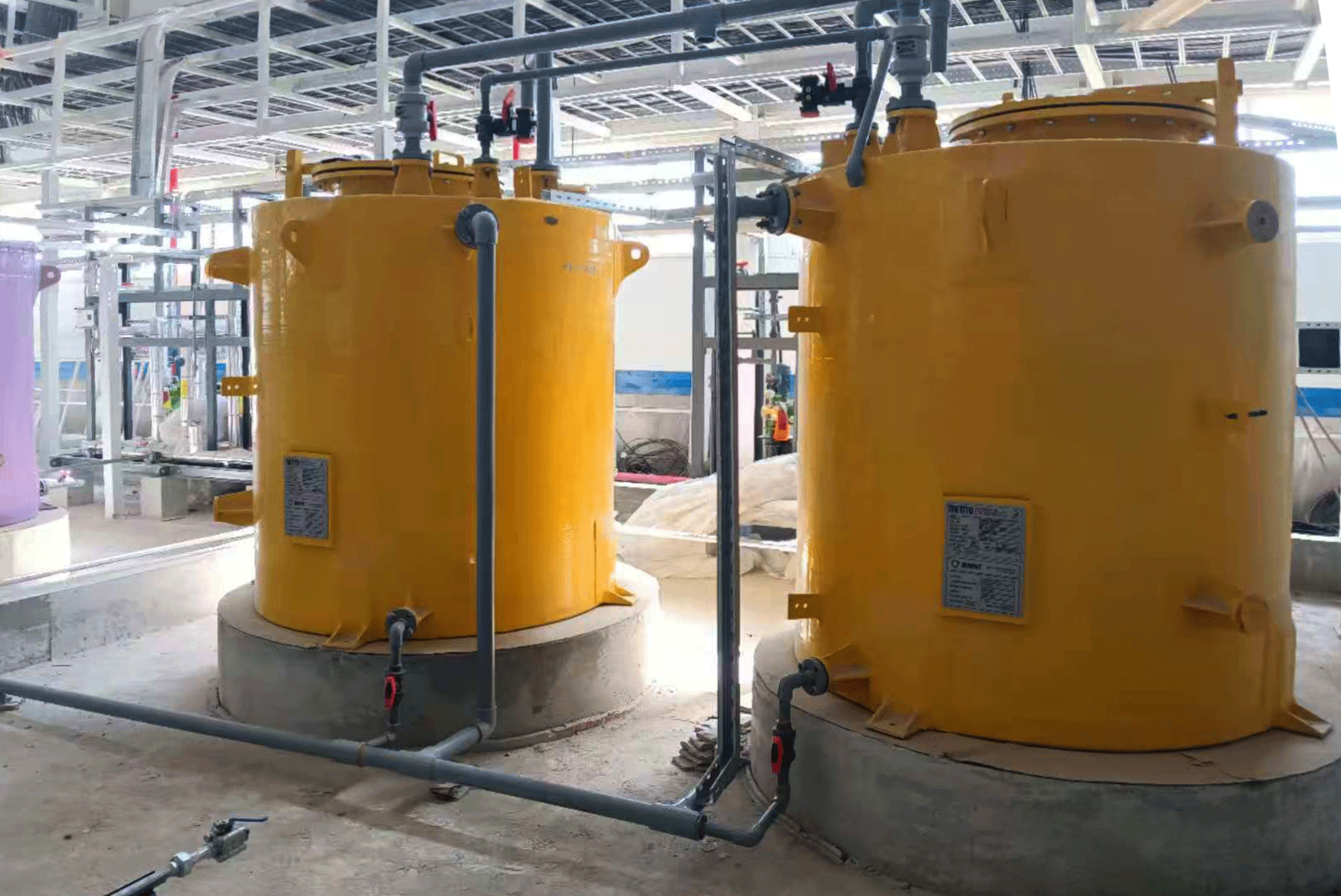

Kazakhstan SMK Project

Size: φ5500*5500mm *23
